BBB Antweight Dual ESC v3
£12.50

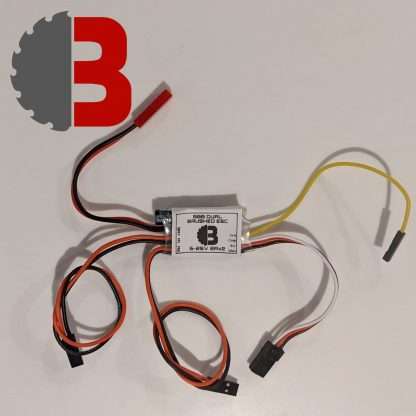

BBB antweight dual brushed ESC – improving the driving experience and specs for ants! This version 3 is over 40% smaller and over a gram lighter (most of the weight is the wires still!) than v2, but with all the great specs! How to connect up & wire ESC below. Please read our Antweight Drive Kit Build Guide for step by step wiring guide. CAD: STEP (thanks Shakey!)
- Custom firmware with center braking for greatly improved driving experience
- ESC actively brings motors to a stop when the sticks are centered for better control.
- 2A per side (4A peak) – Ideal for two or four N10s or N20s.
- 2-4S support input for higher voltage applications
- Weighs only ~7g including all pre-soldered connectors with the motor wires cut to length
- can save quite a lot of the weight by shortening wires, removing connectors & direct soldering to receiver
- Built in 5V 1A BEC for receiver and servos!
- Built in drive mixing, which can be disabled (see below)
- the only soldering required is to the motor terminals, otherwise it’s plug and play! (see below)
