XT30 Safety Kit
From £3.00
A great kit to add all the essential safety features to your beetle – link or switch, fuse and power light. Includes:
- A power cut off choice of:
- A FingerTech Metric Switch or
- A Lynx Anti-Spark Power Switch or
- A XT30 connector with built in mount as a link mount
- A pair of XT30 connectors – can use as the removable link or to connect lipo.
- Heat Shrink for the connector ends
- 30A fuse wire to easily add a fuse as part of your removable link – just solder it across the XT30 terminals.
- A power light of your choice
Wiring diagrams below.
Select Power Cut-Off:
Qty:-+
Select Power Light:
Select Fuse Size:
Add wiring loom:
Related Products:
-
3 Pairs of 3.5mm Bullet Connectors
£1.00 Add to basket -
A30 Male Female Pair
£1.00 Add to basket -
Beetleweight Brushless Drive Kit
From £168.00 Select options -
12V LED Safety Power Strip Light
£1.50 Add to basket -
LED Safety Power Light
0.50 Select options -
XT60 Female to XT30 Male Adapter
£1.00 Add to basket -
XT30 with built in mount
£1.50 Add to basket -
Adjustable 2-8S Mountable Power Light LED
£2.00 Add to basket -

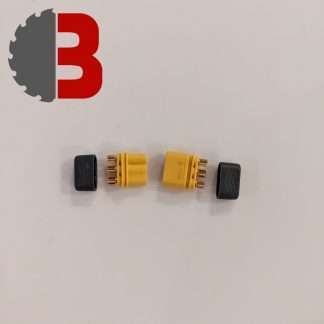

MR30 Male Female Pair & Sleeves
£1.00 Add to basket
Example Robot: Sproing! by Will Pargeter
Sproing! is Will’s spring powered flipper bot. It runs two servos to wind the springs up to release as a flipper! He uses the full BBB drive kit including all the safety components – LED, fuse wire link and micro BEC.
FingerTech Switch Wiring Diagram:
Lynx Anti-Spark Switch Wiring Diagram:
Removable link example circuits:
Typical Beetle Wiring Diagram using the safety kit:
Components in this example: 3S or 4S Lipo, Beetle Safety Kit, Breakout cable, BBB ESCs, BBB 22mm Motors, BEC and Flysky Reciever.
Image made by Team DSC.
Jed (verified owner) –
This little kit gets you half way through passing tech checks immediately! Now I just need to worry about fitting in the weight limit 🙂
