Beetleweight Drive Kit

(7 customer reviews)

From $120.25

Everything electronically and mechanically you need to get a beetle driving – BBB motors, mounts & speed controllers, FingerTech hubs & wheels and our full beetle safety kit. Optional BEC, receiver and wiring loom. Just add a lipo and transmitter – we recommend a 3S 500-800mAh Lipo and a FlySky i6 Transmitter.

We recommend you build a chassis from 8-10mm HDPE for the walls and 4-5mm HDPE for lid/base, we have a full beetle build guide here. Any issues or questions during the build, you can email us at bristolbotbuilders@gmail.com or message us on facebook, we’ll be happy to help. Wiring Diagram  & Battle Hardening info below!

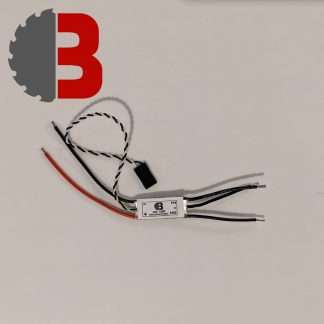

2 × BBB Beetleweight Single Brushed ESC v3
$21.45

12 in stock

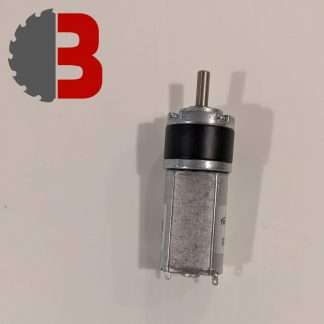

2 × BBB Beetleweight Planetary 22mm Gearmotor v2
$21.45

36 in stock
1 × Pair of 22mm BBB Beetleweight Motor Face Mounts
$4.55

Out of stock
Select Wheel Size:
1 × Pair of 4mm FingerTech Twist Hubs
$20.80

4 in stock
Add a Twist Hubs Key:
To smoothly twist on the twist hubs! We made this out of laser cut nylon. Needle nose pliers are another (more scrapey) option.
Add a BEC:
You will need a BEC (Battery Eliminator Circuit) to lower the voltage of your lipo (12V or 16V) down to a safe value for your receiver (5V) and possibly a weapon servo.
Add a Receiver:
The Flysky receiver is intended for the Flysky FS-i6 and other AFHDS 2A transmitters, please check your transmitter supports this before purchasing.
Safety Kit:
1 × XT30 with built in mount
$1.95

60 in stock
XT30 Male Female Pair & Heat Shrink
$1.30

31 in stock
Qty:-+

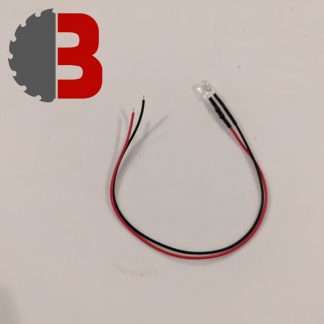

Select Light:
1 × 30A Fuse Wire (Beetleweight)
$0.00
Add a Wire Loom:
Categories: , Tags: , , , , , , , , , , , , ,

Related products

Diagram using the components in this kit:



Components in this example: 3S or 4S Lipo, Beetle Safety Kit, Breakout cable, BBB ESCs, BBB 22mm Motors, BEC and Flysky Reciever.
Image made by Team DSC.

Battle Hardening

From FingerTech:
As with every gearmotor, it is best practice to remove all the screws and reassemble using loctite. A small dab on each screw will be enough to keep them from vibrating loose.
– Since the gearboxes are packed with grease, it will need to be cleaned off of the eight small Phillips screws before applying the loctite.
– Even better than loctite is a product called Vibra-Tite VC-3. Apply it to the screw threads, wait 30min, and it will harden to a plastic-like coating. Since it hardens before touching the greasy gearbox threads, it can do a better job of holding the screws in place.
