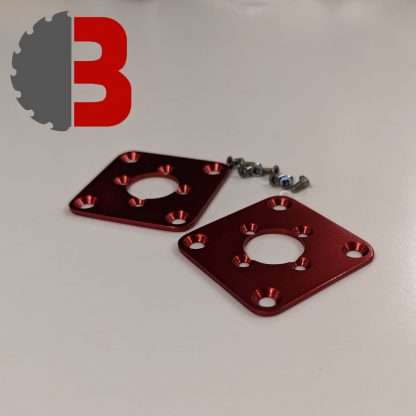

Pair of FingerTech Mega Spark Face Mounts
£5.50
Anodised red 6061 Aluminium faceplates designed to fit 24mm motors such as Mega Sparks and Repeat Max v1. They will also work well with our 22mm motors and Repeat Compact. Comes with eight M2x5mm countersunk screws to mount your motor. Note: These are not compatible with Repeat Max v2. Mounting example below. CAD: STEP. PDF Drawing.
6 in stock
Related Products:
-
Repeat Compact Brushless Planetary 22mm Gearmotor
£46.50 Add to basket -
Repeat Max v2 Brushless Planetary 24mm Gearmotor
£55.00 Add to basket -
Beetleweight Brushless Drive Kit
From £161.00 Select options -
Beetleweight Brushed Drive Kit
From £90.00 Select options -
FingerTech Metric Power Switch
£9.00 Add to basket -
Repeat Gold Screw Hub
£5.00 Select options -
FingerTech Metric Power Switch Screw
£1.50 Add to basket -
FingerTech Foam Wheels
£3.75-£6.50 Select options -
Pair of Repeat Gold Eco Hubs v2 for Foam Wheels
£16.50 Select options

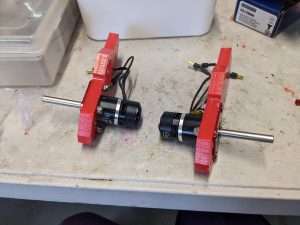

For mounting Repeat Max or other 24mm motors we recommend a similar method to 22mm faceplates:
Use a 24mm forstner bit to cut a hole in 10mm HDPE or similar, attach the faceplate to the outside with woodscrews/M3 bolts:
James Booth (verified owner) –
The FingerTech face mounts for their FingerTech Mega Sparks are good face mounts that also work with the 22mm BBB motors.
Their low profile, being roughly 2mm thick with countersunk mounting holes makes them great for compact robots with minimal wheel space. And being made from aluminium gives me confidence in their durability.
That being said my main complaint is the size of the mounts. I find that they are a little too big (L+W wise) for compact robot designs and I need to file them down by 1mm or 2 to match the height of the chassis of my robot. Maybe an option for a mount that’s roughly the size of the old BBB mounts could be worth a look, at the very least a middle ground between the two available mounts could help save some builders a little headache.
I do also have a very minor nitpick. While I’m grateful FT went to the effort to anodise the mounts for a bit of flare. It would be nice if they came in a neutral colour or bare aluminium as opposed to the red it clashes with colour schemes on non-red robots. And it’s a pain to have to sand it off.
But despite my complaints. These have worked well for me and in most cases will be ideal for being off-the-shelf mounting for the FT Mega Sparks.
