Adjustable 2-8S Mountable Power Light LED
£2.00
Jed’s designed these great tiny LED power lights – the PCB has a 3mm hole for easy mounting to your bot chassis. It has selectable voltage range for different sizes of battery! CAD: STEP. Drawing & Beetle/Feather wiring example below.

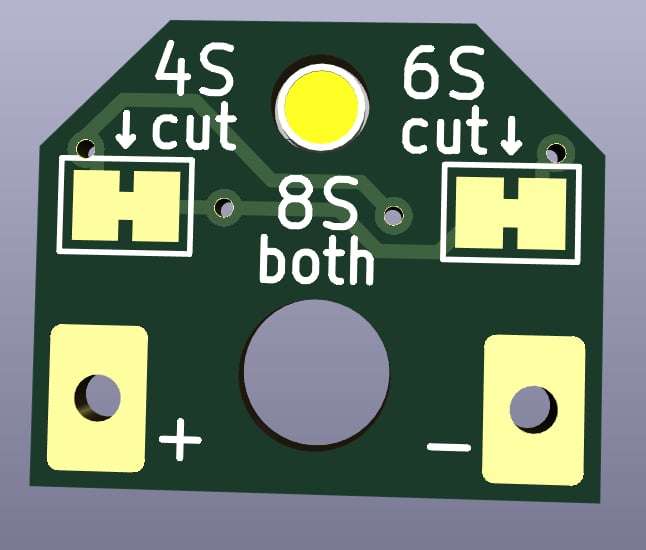

Adjustable voltages options (lipo voltages): 2-3S: leave as is. 4S: cut left tab. 5-6S: cut right tab. 7-8S: cut both tabs.
Ensure not to overtighten your mounting screw as that risks cracking the PCB.
62 in stock
Related Products:
-
Lipo Safety Bag
£5.00 Add to basket -
LED Safety Power Light
0.50 Select options -
Repeat 2004 Antweight Spinner Brushless Motor
£24.00 Select options This product has multiple variants. The options may be chosen on the product page -
Thumbsticks for Flysky FS-i6 Transmitter
£1.00 Add to basket -
Aluminium Servo Arm Horn
£3.00 Add to basket -
SkyRC B6neo Lipo Battery Charger
£36.50 Add to basket -
A30 Male Female Pair
£1.00 Add to basket -
DuraHubs Antweight Wheels
£4.50 Select options
Drawing:
Typical Beetle/Feather Wiring Diagram with LED as power light:
Components in this example: 3S or 4S Lipo, Beetle Safety Kit, Breakout cable, BBB ESCs, BBB 22mm Motors, BEC and Flysky Reciever. Image made by Team DSC.
Reviews
There are no reviews yet.
