BBBxN&B Antweight N10 Gearmotors

(3 customer reviews)

£11.00

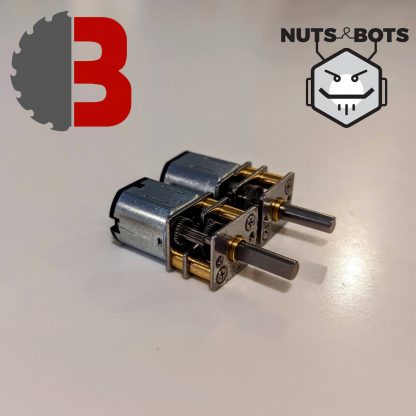

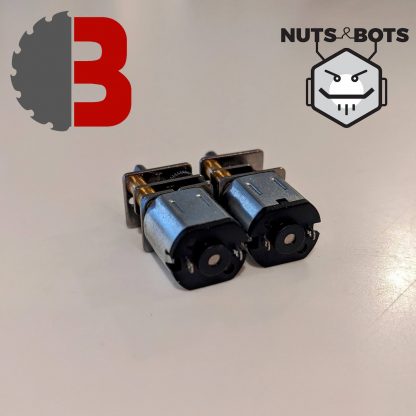

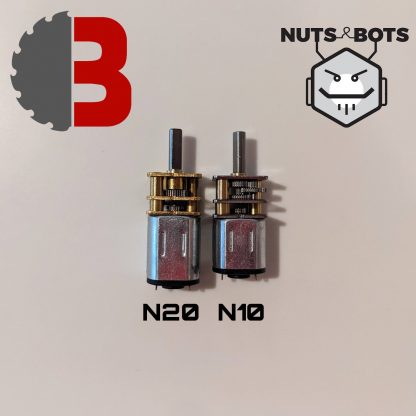

We’ve teamed up with our pals at Nuts & Bots to offer N10 gearmotors – perfect for antweight drive! Custom made to our specifications – compared to our N20 gearmotors these are 25% more powerful (1A vs 0.8A stall) while being 3mm shorter and nearly 2g lighter. They use stainless steel gearbox plates for more toughness and weight saving than typical brass plates. These N10s have the same gearbox size and shaft as N20s so are compatible with N20 wheels and mounts. We recommend 600rpm for more control or 1000rpm for more speed! We also stock 300rpm for large wheeled bots and 100rpm for gearmotor based weapons. Note: 100rpm have brass gearbox plates and are sold individually.
CAD: STEP file

£11.00

106 in stock

£11.00

79 in stock

£11.00

20 in stock

£6.00

18 in stock

Category: Tags: , , , , ,
Size

33x12x10mm per motor
9x3mm Output Shaft

Weight

~8g per motor

RPM

~100, ~300, ~600 or ~1000rpm at 6V

Input Voltage

6V motor, suited for 2S lipo

Current

No load: ~0.1A at 7.8V
Stall: ~1A at 7.8V

3 reviews for BBBxN&B Antweight N10 Gearmotors

  1. Jack (verified owner)

    These are the standard for drive motors in antweights and after building my drum bot GetGot with its ludicrously oversized wheels (around 60mm diameter) – I needed a slower motor to get the handling under control.

    The 300rpm models worked a treat and turned GetGot from a twitchy mess to something that glides controllably around the arena.

    1000/600 is ideal for most bots – but if you’re making something with BIG wheels the 300s are a great option to have

  2. Matt (Team Croc) (verified owner)

    I simply cannot overstate how good these motors are, I use N10s (1000RPM variants) in all my antweights now and have powered my machines to many a fight win – have never looked back since!

    Not only are they lighter and smaller than the equivalent N20 but they’re even more powerful and responsive. What’s not to love?

  3. Rob W (verified owner)

    Got some of these in 1000rpm to improve the speed of Baby Boomer, they’ve worked wonders! Easy to install, reliable and surprisingly durable, I’ve fought a bunch of scary spinners, taken big hits and they’re still working as well as the day I bought them. Highly recommended.
